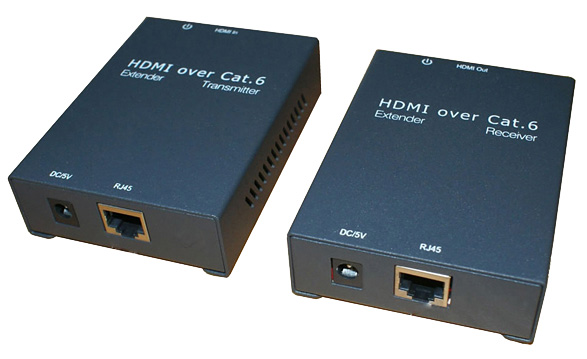

This HDMI Extender over single CAT uses one piece of CAT5e/6 cable to extend the HDTV display up to 60 meters for 1080p. It not only breaks the limitation of the HDMI cable transmission length,but also has more flexibility and convenience in cable construction.

It is equipped with HDMI (high definition multimedia interface) connector and is capable of supporting DVI (digital visual interface) equipment when used with an HDMI to DVI Adapter, providing greater flexibility and options when integrating several home theater components.

This product offers solutions for residential consumers: HDTV retail and show site, HDTV, STUB, DVD and Projector factories, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Features

• One pair as a full functional module, no need of setting.
• One piece of CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
• Follow the standard of IEEE-568B.
• Transmission distance can be up to 60 meters for 1080p using CAT-6 Cable.
• Auto-adjustment of feedback, equalization and amplify, the user does not need to care about the length of the cable.
• Compact size.
• Support HDMI 1.3
• Support highest video resolution 1080p.
• Support 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
• Support 8bit per channel (24bit all channel) deep color.
• Support uncompressed 2 channel audio such as LPCM

Specification


Signal Inputs/Output Input Video Signal 0.5 -1.0 volts p-p
Output Video HDMI 1.3
Video format supported DTV/HDTV 480i/576i/480p/576p/720p/1080i/1080P
Transmission distance CAT-6 cable 60M for 1080p
Operating Frequency Video Amplifier Bandwidth 6.75Gpbs/225MHz
Vertical Frequency Range 50/60Hz
Resolutions(HDTV) Interlaced(50&60Hz) 480i,576i,1080i
Progressive(50&60Hz) 480p,576p,720p,1080p
Mechanical Size (L-W-H) 100*65*25.5MM
Weight (Net) 385G
Environmental Operating Temperature 0℃ to +70℃
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10℃ to +80℃
Storage Humidity 5% to 90 % RH (no condensation)
Power Requirement Power Supply 5V DC@2A
Power consumption (Max) 5W
