Features

• Incorporates HD Base-T technology

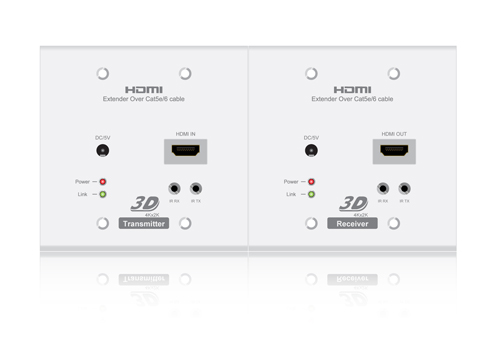

• Following North American wall plate standard.
• Full HD support: 1080p@60Hz@48 b/pixels, 3D and 4Kx2K
• Extends 1080p Full HD and 3D TV up to 328 feet (100 meters) using one CAT5e (or better) cable
• Allows IR remote control of source devices
• Supports high bit-rate audio formats (Dolby True HD / DTS Master Audio)
• DC 5V power supply

Specification


Operating Temperature Range -5 to +35℃(+23 to +95℉)
Operating Humidity Range  5 to 90%RH (No Condensation)
Input Video Signal  0.5-1.0 Volts P-P
Input DDC Signal  5 volts p-p(TTL)
Support Video Format  DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/4Kx2K
3D video
HDMI Output  HDMI 1.4+HDCP
Support Audio Format  DTS-HD Master Audio, Dolby true-HD etc.
Transmission Distance  1080P 328FT/100m(Maximum) over single CAT5E/6 Solid
Power consumption  5watts(Maximum)
