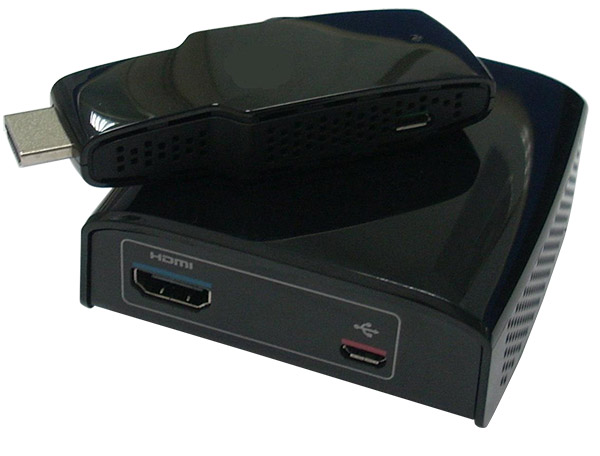

HOME-->Product-->HDMI Wireless-->HDU-50
| HD2TV | HDU-50 | HDU-52 |



Features

• Send video up to Full HD 1080P to anywhere in your home.
• Built in remote relay function to control source from anywhere in your home.
• Accept all types remote control code perfectly.
• MIMO technology uses the 5GHz band.
• Less than 1 Millisecond latency, ideal for real time video gaming.
• Transmission range up to 50 meters line of sight.

Specification


Mode TX RX
Host Interface

1.HDMI Type A socket x1 for input
from HDMI / DVI source

2.Mini USB Port x1 for power source

1.HDMI Type A socket x1 for output
to TV / Display

2.Mini USB Port x1 for power source

Switch Power ON/OFF Botton x1 Power ON/OFF Botton x1
UP/DOWN Botton x2
Power Consumptio 2.5Watt-1080p / 2.1Watt-720p 6Watt-1080p / 5.5Watt-720p
Dimensions 80L x 31W x 15.5H (mm) 84L x 79W x 27H (mm)
Operating Voltage 5V1A Mini USB Connector (Female)
Freguency Band 5 GHz
Video Resolutions HD:480i,480p,576i,576p,720p,1080i,1080p
PC:VGA(640x480),SVGA(800x600),XGA(1024x768)
Audio I2S:Up to 8 PCM channels (sampled up to 192KHz x 24bit)
SPDIF:Including AC-3, DTS
Operating Range 50 meter line of sight
Temperature Range 0~40 ℃(operating),-20~65 ℃(storing)
Regulatory FCC /CE
