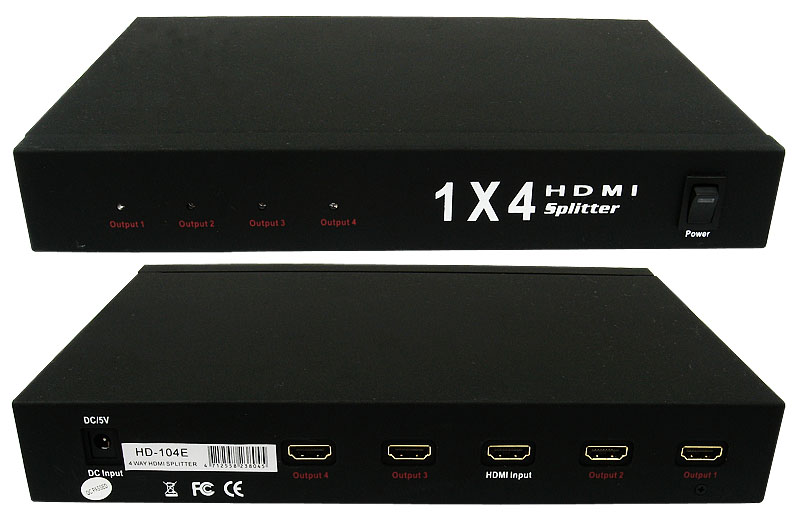

HD-104E
The HD-104E is 1 (input) x 4 (output) HDMI
splitter. It distributes the HDMI input into 4 identical outputs. These
8 outputs are synchronized.
HD-104E has the ability of buffering and
amplifying. Each HD-104E unit’s output can achieves long distance
transmission of HDMI signal up to 15 meters.
When two or more HD-104Es are cascaded, they can be used to create a larger distribution and
longer length.
HD-104E offers solutions for HDTV retail and show site,
HDTV, STB, DVD and Projector factory, noise, space and security
concerns, data center control, information distribution, conference room
presentation, school and corporate training environments.
HD-108E
The HD-108E is 1 (input) x 8 (output) HDMI
splitter. It distributes the HDMI input into 8 identical outputs. These
8 outputs are synchronized. HD-108E has the ability of buffering and
amplifying. Each HD-108E unit’s output can achieves long distance
transmission of HDMI signal up to 15 meters. When two or more HD-108Es
are cascaded, they can be used to create a larger distribution and
longer length.
HD-108E offers solutions for HDTV retail and show site,
HDTV, STB, DVD and Projector factory, noise, space and security
concerns, data center control, information distribution, conference room
presentation, school and corporate training environments.
• Install in seconds fastly, no need for setting.
• Distribution: 4 or 8 identical HDMI outputs.
• Cascaded: Large distribution achieved.
• HDCP compliant.
| Characteristics | 1 x 4 Distribution Amplifier | 1 x 8 Distribution Amplifier |
| Operating temperature range | 0 to +70℃ | 0 to +70℃ |
| Operating humidity range | 5 to 90 % RH (no condensation) | 5 to 90 % RH (no condensation) |
| Video Amplifier Bandwidth | 2.5Gbps/250MHz | 2.25Gbps/225MHz |
| Input Video Signal | 0.5-1.0 volts p-p | 0.5-1.0 volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) | 5 volts p-p (TTL) |
| Maximum Single Link Range | 1920 x 1200, 1080P | 1920 x 1200, 1080P |
| VGA | 640x480,800x600,1024x768,1920x1200 |
640x480,800x600,1024x768,1920x1200 |
| DTV/HDTV | 480i/576i/480p/576p/720p/1080i/1080p | 480i/576i/480p/576p/720p/1080i/1080p |
| Output Video | HDMI/HDCP:1.3b/1.2/1.1 | HDMI/HDCP:1.3/1.1 |
| Power Consumption | 15 Watts (max.) | 15 Watts (max.) |
| Power Supply | 5VDC | 5VDC |
| Dimensions | 270mmW x 45mmH x 182mmD | 440mmW x 45mmH x 200mmD |
| MASS | 1.8 Kgs | 2.5 Kgs |
