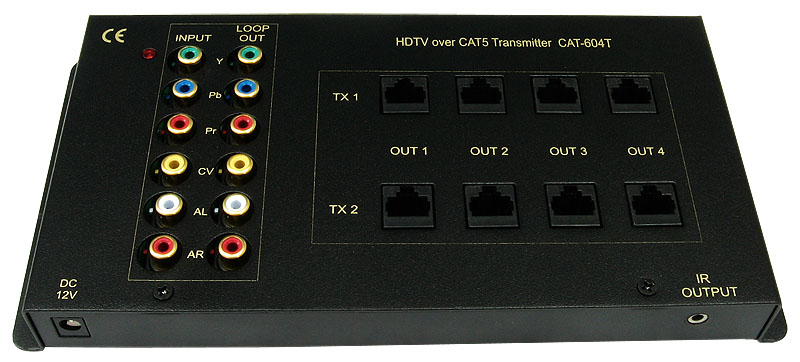

The CAT-604T is CAT5 Transmitter via simple Category 5 (CAT5) UTP cable
to transmit Component Video (YPbPr) and Digital Audio or Composite Video
and Stereo Audio for long distance connect.
CAT-604T connects the source equipment directly; the signals are
distributed up to 4 clusters. If it connects CD-104 /CD-108 can be
string the more extension outputs on any of the CAT-606R.
1.Support Component Video (YPbPr) and Digital Audio or Composite Video and Stereo Audio
2.Digital Audio(SPDIF) port support Composite Video signals
3.Loop output for use of additional CAT5 Transmitters
4.Long distance extend via CAT5
•1000 feet for SDTV resolution 480p
•600 feet for HDTV resolution 720p
•450 feet for HDTV resolution 1080i
•1000 feet for Composite Video(YPbPr)
•1000 feet for Digital Audio (SPDIF) and Stereo Audio
4.Modular component video I/O configuration available in a variety of sizes
5.Route and distribute YUV over CAT5 twisted-pair instead of costly individual cables
6.Reduce overall installed cost about 40%
7.Enclosure type: wall mount metal case
| Specifications | CAT-604T |
| Type of Signals | Component Video(YPbPr)+Digital(or Composite Video)+Stereo Audio |
| Input | 1 set x Color-coded RCA female connectors |
| Output | 4 set x RJ-45 Jack |
| Loop Output Terminal | 1 set x Color-coded RCA female connectors |
| Video Bandwidth | 225MHz, -3dB large signal bandwidth 450MHz, -3dB small signal bandwidth |
| Slew Rate | 1600V/μs |
| Output Balance Error | -60dB@50MHz |
| High Isolation | Between Amplifier 80dB @ 10MHz |
| Video In Impedance | 75Ohms |
| Video Maximum In Levels | 1.4Vp-p |
| Audio In Impedance | 10K Ohms |
| Audio Frequency Response | 20Hz to 20KHz, +/-1dB |
| Audio Maximum In Levels | 2Vp-p |
| Distance via CAT6 Cable | 1080i (1920x1080) 450feet 720p (1280x720) 600feet 480p (720x480) 1000feet Composite Video 1000feet |
| Dimensions | 227(W) x 115(D) x 28(H)mm |
| Net Weight | 0.62kg |
| Power Requirement | DC12V@1A |
