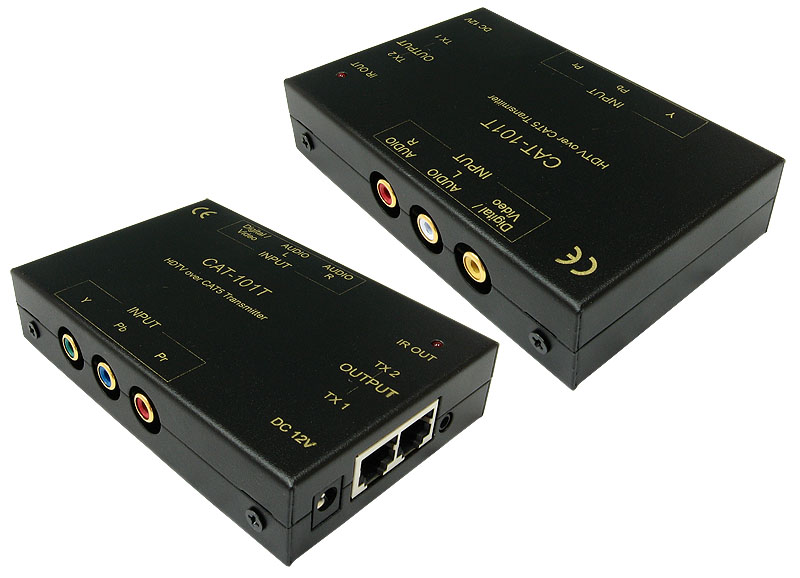

The CAT-101T is CAT5 Transmitter via simple Category 5 (CAT5) UTP cable to transmit Component Video (YPbPr) and Digital Audio or Composite Video and Stereo Audio for long distance connect.
If it connects CD-104 /CD-108 can be string more extension outputs on any of the CAT-606R, CAT-103R, CAT-101R.

Features

1.Support Component Video (YPbPr) and Digital Audio or Composite Video and Stereo Audio
2.Digital Audio(SPDIF) port support Composite Video signals
3.Long distance extend via CAT5
•1000 feet for HDTV resolution 480p
•600 feet for HDTV resolution 720p
•450 feet for HDTV resolution 1080i
•1000 feet for Composite Video(YPbPr)
•1000 feet for Digital Audio (SPDIF) and Stereo Audio
4.Modular component video I/O configuration available in a variety of sizes
5. Route and distribute YUV over CAT5 twisted-pair instead of costly individual cables
6.Reduce overall installed cost about 40%

Specification


Specifications CAT-101T
Type of Signals Component Video(YPbPr)+Digital(or Composite Video)+Stereo Audio
Input 1  x Color-coded RCA female connectors
Output 1  x RJ-45 Jack
Video Bandwidth 225MHz, -3dB large signal bandwidth
450MHz, -3dB small signal bandwidth
Slew Rate 1600V/μs
Output Balance Error -60dB@50MHz
High Isolation Between Amplifier 80dB @ 10MHz
Video In Impedance 75Ohms
Video Maximum In Levels 1.4Vp-p
Audio In Impedance 10K Ohms
Audio Frequency Response 20Hz to 20KHz, +/-1dB
Audio Maximum In Levels 2Vp-p
Distance via CAT6 Cable 1080i  (1920x1080)   450feet
720p   (1280x720)   600feet
480p (720x480)  1000feet
Composite Video   1000feet
Dimensions 64(W) x 104(D) x 25(H)mm
Net Weight 0.3kg
Power Requirement DC12V@1A
