The Oarsman SMATV Series Booster can Distribute all VHF, UHF, Terrestrial (CATV) Digital, Satellite Digital Signals with Separator or Combine Input and Only one Lead-In Cable Output to Distribution System.

Features

• Support All Digital Broadcasting Band
• Gain and Slop Adjustable
• Input 0~10dB Attenuated Selectable
• Input and Output -20dB Test Ports
• Separator or Combiner Input Selectable (TA3000)

Specification

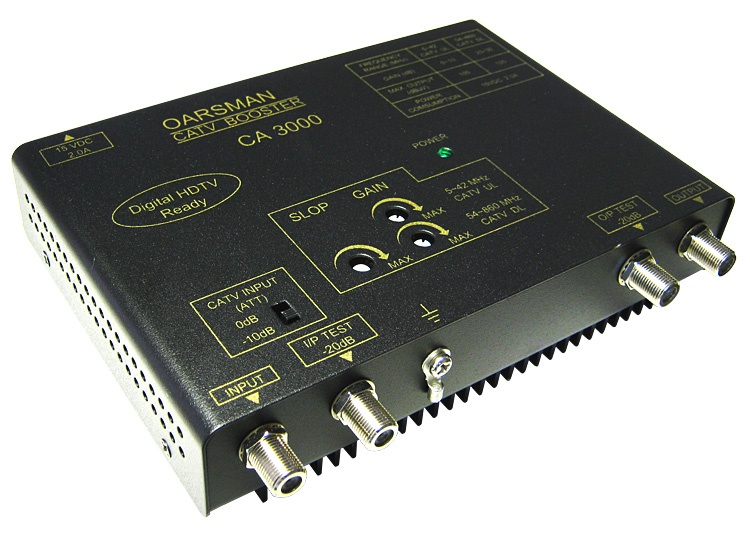

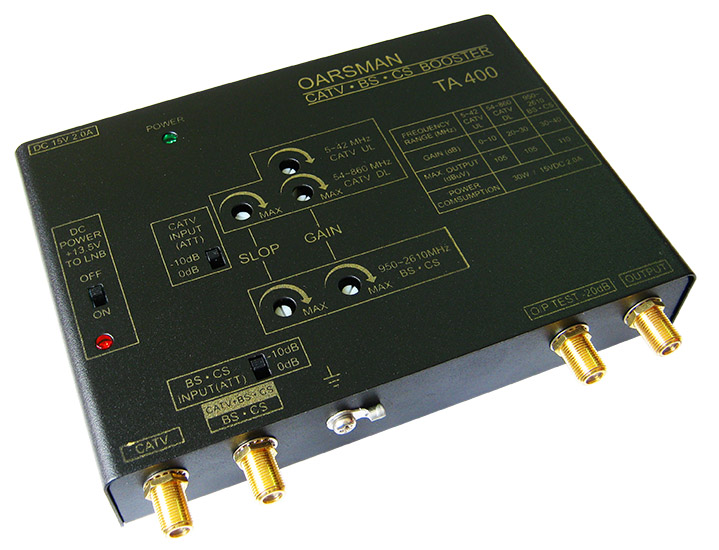

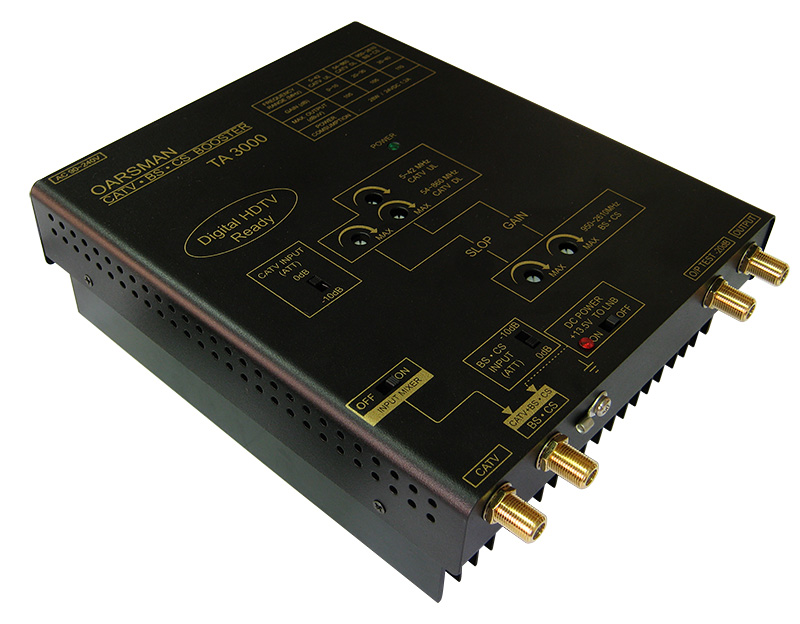

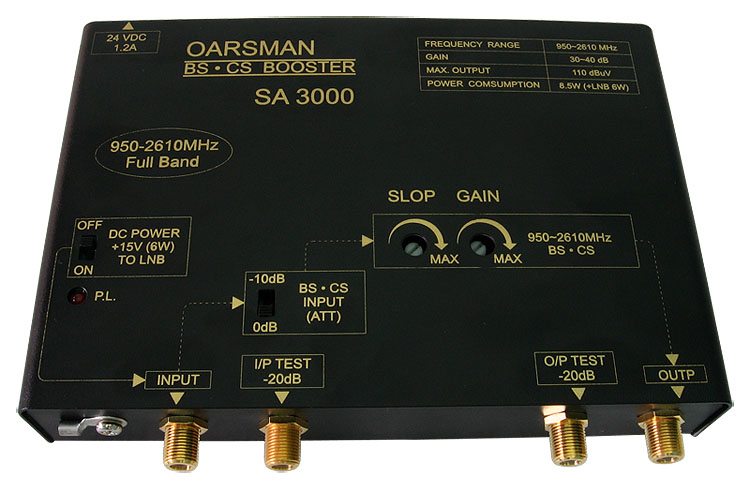

Specification TA400 TA3000 CA3000 SA3000
Satellite Bandwidth (MHz) 950 - 2610 950 - 2610 - 950 - 2610
Max. Output Level 110dB 110dB - 110dB
Gain Adj. Range 30 ~ 40dB 30 ~ 40dB - 30 ~ 40dB
Slop Adj. Range 0 ~ 20dB 0 ~ 20dB - 0 ~ 20dB
Input Attenuated 0 / -10dB 0 / -10dB - 0 / -10dB
LNB Power Out 0 / +13.5VDC 0 / +13.5VDC - 0 / +13.5VDC
Return Loss 12dB 12dB - 12dB
Noise Figure 10dB 10dB - 10dB
CATV Forward Bandwidth (MHz) 54 - 860 54 - 860 54 - 1000 -
Max. Output Level 105dB 105dB 105dB -
Gain Adj. Range 20 ~ 30dB 20 ~ 30dB 20 ~ 30dB -
Slop Adj. Range 0 ~ 10dB 0 ~ 10dB 0 ~ 10dB -
Input Attenuated 0 / -10dB 0 / -10dB 0 / -10dB -
Return Loss 14dB 14dB 14dB -
Noise Figure 8dB 8dB 8dB -
CATV Return Bandwidth (MHz) 5 - 42 5 - 42 5 - 42 -
Max. Output Level 105dB 105dB 105dB -
Gain Adj. Range 0 ~ 10dB 0 ~ 10dB 0 ~ 10dB -
Input Attenuated 0 / -10dB 0 / -10dB 0 / -10dB -
Return Loss 14dB 14dB 14dB -
Noise Figure 6dB 6dB 6dB -
Power Consumption 28W 28W 20W 8.5W
Power Supply AC100~240V 50/60Hz / 15VDC 2A
In/Out Impedance (ohm) 75 (F-female)
Operating temperature range -10~+40°C
Net Weight 1.3kgs 1.5kgs 1.2kgs 0.7kgs
Dimensions WxDxH (mm) 181 x 140 x 46 179.4 x 195 x 57 179.4 x 146 x 57 179.4 x 146 x 33
